Vacuum Drifting

VACUUM DRIFTING

The Vacuum Drift System was designed to remove one of the most dangerous parts of casing preparation, which is using a snake and drift to confirm casing ID. This eliminates the hazards of conventional drifting while ensuring there are no deformities in the tubular. Efficiency without the noise. This design reduces operation noise by utilizing a vane pump instead of a blower creating 27 mercury units of vacuum force. With the unit fully mobile it can be utilized anywhere on-site, even in difficult-to-reach areas with any length of hose. It contains an adjustable reverse function to push the drift if it becomes lodged in the tubular. Drift times per/joint depend on casing size and volume of air moved.

#RedefineTRS™

FEATURES

Drift Range: 2.63 - 13.63” (66.8 - 346.2 mm)

Vacuum Adjustment: 0 - 27 Hg (vacuum force)

Size: Length 45” (1,143 mm), Width 30” (762 mm), Height 75” (1,905 mm)

Weight: 400 lbs (182 kg)

Hose Length: X2 100’

SPECIFICATIONS

Heading #3	Heading #3
165 CFM @ 1,150 RPM
27 HG (Mercury units of vacuum force)
13 HP Honda motor
Rubberized drifting ends for hoses

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

Break-Out Vise

BREAK-OUT VISE

The Break-Out Vise was designed to work with the Petol brand Tong & Chain Vise. A variety of torque ratings are available upon request. The compact footprint, along with a mobile support stand, allows the assembly to be installed into even the smallest areas for making and breaking rotary shoulder connections.

Used primarily for CRT tools, the vise and adjustable roller stand allows you to both make and break connections. This is accomplished inside of the same footprint by simply shifting or rotating the tool. The Break-Out Vise’s compact footprint and mobile support stand allow the assembly to be installed into the smallest areas. A variety of torque ratings are available upon request. From make-up to break-out in mere minutes.

#RedefineTRS™

FEATURES

Sliding head design allows for vise or adjustable roller to be moved for make / break operations

Lift ram for installation and removal of tong after operation

Independent hydraulic control stand available upon request

Low flow hydraulic system allows for controlled use

SPECIFICATIONS

Heading #3	Heading #3
TORQUE RATING	40,000 – 90,000 ft/lbs (54,230 – 12,2025 Nm)
TUBULAR OD RANGE	4 – 14” OD
DIMENSIONS	Length 60“ (1,524 mm), Width 46” (1,168 mm), Height 56” (1,422 mm)
WEIGHT	1,500 lbs (680 kg)
PRESSURE RATING	3,000 PSI (20,700 kPa)
HYDRAULIC FLOW REQUIREMENTS	2 – 8 gal/min (7.5 – 30.5 L/min)

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

Vacuum Drift

VACUUM DRIFT

The Vacuum Drift System was designed to remove one of the most dangerous parts of casing preparation, which is using a snake and drift to confirm casing ID. This eliminates the hazards of conventional drifting while ensuring there are no deformities in the tubular. Efficiency without the noise. This design reduces operation noise by utilizing a vane pump instead of a blower creating 27 mercury units of vacuum force. With the unit fully mobile it can be utilized anywhere on-site, even in difficult-to-reach areas, with any length of hose. It contains an adjustable reverse function to push the drift if it becomes lodged in the tubular. Drift times per/joint depend on casing size and volume of air moved.

#RedefineTRS™

FEATURES

Drift Range: 2.63 - 13.63” (66.8 - 346.2 mm)

Vacuum Adjustment: 0 - 27 Hg (vacuum force)

Size: Length 45” (1,143 mm), Width 30” (762 mm), Height 75” (1,905 mm)

Weight: 400 lbs (182 kg)

Hose Length: X2 100’

VACUUM DRIFTING SPECIFICATIONS

Heading #3	Heading #3
165 CFM @ 1,150 RPM
27 HG (Mercury units of vacuum force)
13 HP Honda motor
Rubberized drifting ends for hoses

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

Pipe Roller

PIPE ROLLER

The Pipe Roller was developed to enhance safety in tubular handling, addressing the risks associated with conventional pipe rolling methods. Traditional methods can lead to serious injuries, such as pinched fingers, hand injuries, and crushed body parts. The Pipe Roller minimizes these hazards, providing a safer, more efficient solution for rolling tubulars. Designed for repeated use, this tool improves handling practices by eliminating pinch and crush points, making it an invaluable asset for rig operations focused on safety and efficiency.

#RedefineTRS™

FEATURES

Lightweight design allows for repeated use as a hand tool

Tool sizes accommodate wide range of tubulars

Nytril design allows for easy tubular insertion, with no damage to connection

Horizontal force applied (forward or back to begin rolling the tubular)

Bearing assembly allows for quick release without recoil

Handle designed to eliminate pinch and crush points

SPECIFICATIONS

Heading #3	Heading #3
CASING SIZES AVAILABLE	4.5 – 5.5” (114.3 – 139.7 mm) 7 – 9.63” (177.8 – 244.6 mm)
HANDLING WEIGHT	4.5 – 5.5” – 11 lbs (5 kg) 7 – 9.63” – 14 lbs (6.4 kg)

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

CRT Nubbin

CRT NUBBIN

The ProTorque CRT Nubbin was designed to protect both the CRT packer cup and the tubular connection when a Casing Running Tool is used. Damage can occur to the seal and thread profile of the connection if there is misalignment when inserting the CRT. Without a CRT Nubbin, damage can occur to the packer cup as it passes through the connection. The nubbin’s improved stab flank reduces interference when inserting the CRT.

#RedefineTRS™

FEATURES

Specialty sizes and connections available upon request

Inline time savings equates to more productive rig time & seamless operation

7 degree stab flank to protect packer cup and allow easy transition into the tubular

Full circle pry bar hole for easy removal

Reduced thread engagement for more efficient operation

Increased packer cup life

SPECIFICATIONS

Heading #3	Heading #3
SIZING	4.5 – 13.38” (114.3 – 339.7 mm)
AVAILABLE CONNECTIONS	API and most premium manufacturers

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

Tether Ring

TETHER RING

The patented ProTorque Tether Ring was designed as a safety device for Casing Running Tools (CRT). The Bolt-On Replaceable Anchors protect the Grease Port of the Sealed Bearing, with load rated / shock absorbing anchor points, allow the operator to secure the Tether Ring and CRT to the top drive below any connection that might back out. In the event that the CRT becomes disengaged from the top drive quill, the anchor points and safety sling ensures it does not fall to the rig floor. The safety slings are attached to the bail anchors on the Top Drive for a secure anchor point.

#RedefineTRS™

FEATURES

Overhead securement for CRT Tools

Removes the hazard of a dropped object on the rig floor

Ring interchangeable to different CRTs

Tether Sub can be installed pre-job or onsite for torque verification

Clamping force activates dies with 7,500 lbs of bite force

Interchangeable dies / anchor points allow damaged components to be replaced while inspecting and retaining the Tether Ring after use

Play Video

SPECIFICATIONS

Heading #3	Heading #3
LOAD RATING	3,000 lbs (1,665 kg)
SHOCK RATING	40,000 lbs (18,182 kg) of force
FALL HEIGHT RATED	24” (60.9 cm)
RPM RATING:	120 RPM

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

RCD Installation

RCD INSTALLATION

The RCD (Rotating Control Device) Press is used to install or remove a tubular onto an RCD Head. The head is used with Managed Pressure Drilling (MPD) and is conventionally installed on the rig floor. This method of installation can cause a variety of handling and safety concerns. When installing ahead on the rig floor, the rig cost is Non-Productive Time (NPT) so by taking this operation offline we are able to remove the hazards and costs associated.

#RedefineTRS™

FEATURES

Safe and efficient installation process

Reduces hazards and NPT on the rig floor

Inline time savings equate to a more productive operation

SPECIFICATIONS

Heading #3	Heading #3
PRESS STROKE LENGTH	36” (914.4 mm)
OVERALL HEAD LENGTH (MAXIMUM)	52” (1,320 mm)
HEAD OD (MAXIMUM)	24” (609 mm)
TUBULAR OD (RANGE)	3 – 7.63” (76.2 – 193.8 mm)
UNIT PRESSURE RATING (MAXIMUM)	3,000 PSI (20,700 kPa)
HYDRAULIC FLOW REQUIREMENTS	5 – 70 gal/min (19 – 265 L/min)

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

Mobile Bucking Frame

MOBILE BUCKING FRAME

The Mobile Bucking Frame, when coupled with any power tong, can be used for making and breaking out threaded connections. The compact footprint can be utilized in even the most remote locations and it safely assembles and disassembles connections for casing accessories (float shoe / collar), pups, hangers and many other threaded tools.

#RedefineTRS™

FEATURES

Adjustable Back-ups

Reduces hazards and NPT on the rig floor

Inline time savings equates to more productive rig time & seamless operation.

Protorque Bucking frame for oil and rigs

SPECIFICATIONS

Heading #3	Heading #3
PIPE SIZE RANGE	Power Tong 4.5 – 13.63” (114.3 – 346 mm) Back-up jaw 4 – 15” (101.6 – 381 mm)
TORQUE RANGE	4.5 – 5.5” (114.3 – 139.7 mm) 25,000 ft/lbs (33,850 Nm) 7 – 13.63” (177.8 – 346 mm) 35,000 ft/lbs (47,400 Nm)
FLOW RATING	40 – 60 GPM (152 – 227 LPM)
WEIGHT	4,500 lbs (2045 kg)
DIMENSIONS	Length 95” (2,413 mm), Width 58” (1,473 mm), Height 68” (1,727 mm)
HEIGHT ADJUSTMENT	12” (305 mm)
BACK-UP JAW ADJUSTMENT (SCOPE)	Maximum 52” (1,321 mm) Minimum 9” (229 mm)
	All specifications are power tong dependent

ALL SERVICES, ALL LOCATIONS

Contact Us today!

POWER TONG & TUBULAR RUNNING SERVICES

POWER TONG & TUBULAR RUNNING SERVICES

Proper power tong selection for every casing connection is a critical aspect of any tubular running operation. Premium connection torques may dictate the use of specialty components such as hydraulic / air slips or integral back-ups for your power tong. Depending on manufacturer specifications integral back-ups may be a make-up requirement. Our expansive fleet of specialized TRS equipment is available to support the make-up of high torque connection values up to 50,000 ft/lbs. We are able to do this while still maintaining the smallest possible footprint on the rig floor. Our focus is on having the right TRS equipment specific to every job.

#RedefineTRS™

POWER TONG TECHNICIANS

Our experienced and skilled power tong technicians play a major role in the safety and efficiency of a casing run. This makes the selection of your power tong service company a key component of overall performance.

ProTorque attracts and employs some of the industry’s most talented and experienced casing running technicians. Every detail of a casing run must be considered when looking for cost savings and efficiency; particularly on long production strings where every second counts while maintaining a safe operation. When making-up hundreds of connections, filling on the fly and selecting the correct handling equipment (air or hydraulic powered slips); we save time and effort on long challenging casing runs. ProTorque can meet handling requirements of up to 500 tons of hoist capability.

POWER TONG AND HANDLING EQUIPMENT FEATURES

Conventional tong range: 2.63 - 20” (66.8 - 508 mm)

Integral power tong range: 2.63 - 13.63” (66.8 - 346.2 mm)

Torque Output: up to 50,000 ft/lbs (67,790 Nm)

Wrap around (low penetrating) dies available for most sizes and tongs, upon request

Handling equipment: 500 ton capability within North America

High Torque Strap Tongs: 50,000 ft/lbs (67,790 Nm)

Hydraulic / Air Slips: 200 & 350 ton available

Protorque Running Casing Power Tong and Tubular Running expert

ALL SERVICES, ALL LOCATIONS

CONTACT US TODAY

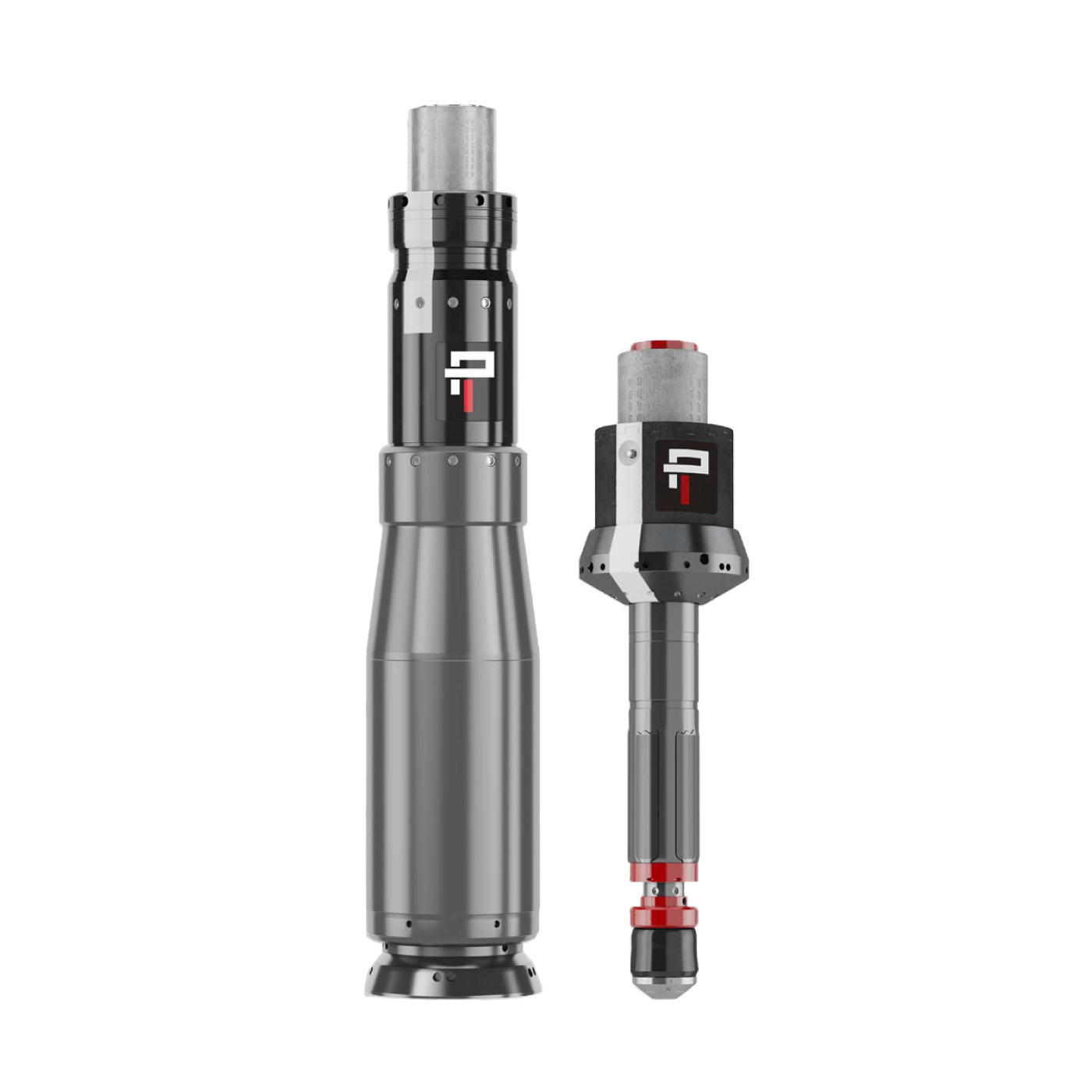

Volant Casing Running Tool

VOLANT®
CASING RUNNING TOOL (CRT)

The CRT is designed for top drive equipped rigs. Its compact design is compatible with most rig configurations and sizes. The completely mechanical design will simplify operations and minimize downtime. Its operation and rig-in remains instinctively simple: a dual release safety mechanism combining weight and rotation. This is necessary for the CRT to be released from the casing.

The ability to rotate, circulate and reciprocate your casing instantly reduces the probability of stuck casing in the most challenging hole conditions. This system will increase safety and assist in efficiently getting your casing to bottom, all while reducing the amount of personnel on the floor.

#RedefineTRS™

FEATURES

Make/break connections, fill, circulate, rotate, reciprocate and cement through capabilities

Completely mechanical

Lightweight and compact

Simple instinctive operation

Single connection rig-in

Immediate solutions for challenging hole conditions

Drilling with casing applications

VOLANT CRT SPECIFICATIONS

Heading #3	Heading #3
HOISTING LOAD	120 – 500 ton
TORQUE OUTPUT	Up to 50,000 ft/lbs (67,800 Nm)
CIRCULATING PRESSURE	Up to 5,000 PSI (34,500 kPa)
MAXIMUM FLOW RATE	Up to 1,460 GPM (5.5 m3/min)
